The production of melamine tableware is a seemingly complicated production process because there seem to be many parameters that need to be adjusted. However, once you get started for a few months, you can sum up several important parameters.

1. Adjust the distance of rising and turning slowly before close the mold.

2. Adjust the molding time according to the product size.

3. Adjust the temperature according to different raw materials.

4. Adjustment of exhaust distance, exhaust wait, and exhaust time.

5. Adjustment of the decal time (almost the same, only fine-tuned).

6. Adjustment of the glazing powder time (almost the same, only fine-tuned).

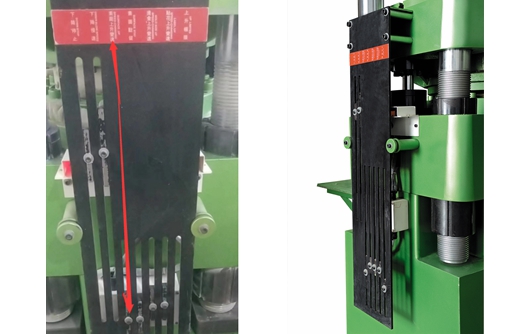

Today Shunhao Factory will introduce the first point in detail: before the mold is closed, the distance adjustment of the rising and slowing down, this needs to be adjusted on the stroke plate of the machine (see the picture below)

The button for rising and slowing down can be adjusted up and down and behind it there is a proximity sensor.

1. This button is close to the sensor, and the light is on, indicating that the position starts to work from fast to slow.
2. When the worker finishes placing the raw materials, press the forming button (CURING) of the machine, and the machine starts to rise rapidly to close the mold.

Therefore, adjust the button to decide when to change from fast to slow.

In order to help customers know more clearly, please read through the following details.

For Plate Making

Raw materials run faster in plate mould then the button for rising and slowing speed can be adjusted downwards to close the mold as soon as possible.

For Deep Bowl Making

Raw material needs more time to fill the entire cavity of the deep bowl mould, then the mold needs to be closed slowly, and the mold should be fully closed when the raw material has filled the entire cavity.

• If the mold has been completely closed before the raw materials have filled the mold, then there will be a problem: the oil pressure gauge shows that the pressure keeps dropping, although the mould is completely closed.

Therefore, those buttons on the stroke plate on the right side of the machine are very useful. We can fine-tune the action to make the machine and mold perfectly matched, which is also an advantage of extending the service life of the machine.

We hope this article is useful to you, please continue to support Shunhao Machine and Mould Factory!
