How to Install the Preheating Machine? Nov 13, 2020

The tube is the most important part of high frequency preheating machine . In Shunhao Factory,  the tube and the machine will be separated and carefully packed. The machine uses wooden box sealed packaging for goods safty, 100% protection of the machine from moisture and collision.

When the machine arrives at the customer's factory safely, Shunhao engineers will help install the Canon tube.

First,we could watch the video and have some idea.

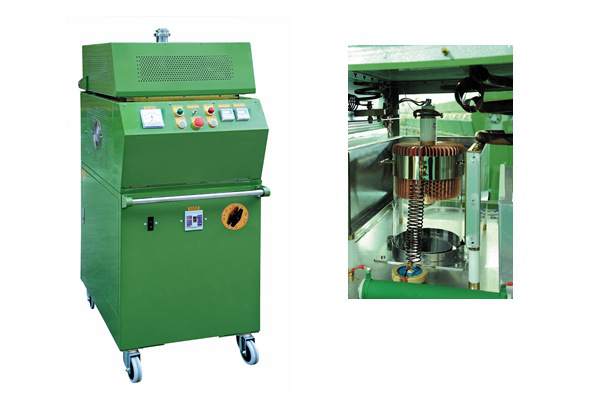

How to install the tube for preheating machine?

Here are the clear steps for you to follow.

1. Take out the glass and place the Canon tube back carefully.

2. Connect other wires or coils with their right place tightly.

Key note: Toshiba Japan Tube has been changed the name into Canon Tube on the 1st.Nov.2018. The tube is the heart part of the HF preheating machine.

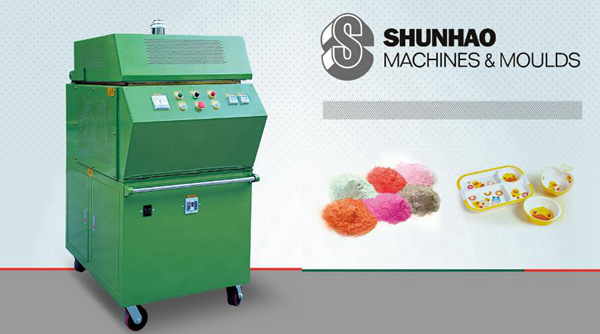

Preheater machine is mostly used for melamine moulding compound preheating process.

MMC Heating Machine



Preheating Machine Parameters:

No

Content.

HGY-520

HGY-720

HGY-1020

1

Output

5KW

7KW

10KW

2

Power Source





3Φ220V

380V

415V

3Φ220V

380V

415V

3Φ220V

380V

415V

3

Power Input

11KVA

13KVA

20KVA

4

Oscillation Frequency

62MHZ

62MHZ

27MHZ

5

Vacuum Tube

7T699RB

E3069RB

8T85RB

6

Voltage Switching

3-stage

3-stage

3-stage

7

Time

999.9S

8

Preheating Power

110 Within 60 secs

9

Phenolic Resin

1200gr

1500gr

6500gr

10

Melamine Moulding Compound

1000gr

1200gr

6000gr

11

Urea Moulding Compound

1000gr

1500gr

6000gr

12

Electrode Size

310×360m/m

340×380m/m

450×560m/m

13

Electrode Spacing

30-70m/m

30-70m/m

35-60m/m

14

Machine Dimensions (L W H)

850×600×1520

850×600×1520

1150×820×1720

15

Machine Weight

260kgs

320kgs

600kgs



Preheater machine has different models:

  • 3KW is very small, seldom used in melamine industry
  • 5KW is normally used with powder capacity is upto 1000grams
  • 7KW is similar to 5KW model, but its capacity is upto 1200grams.
  • 10KW has the powder capacity upto 6000 grams,  to work with the melamine ware molding machine 300tons -800 tons
  • 10 KW preheating machine is recommended fourea toilet seat cover making machine,
