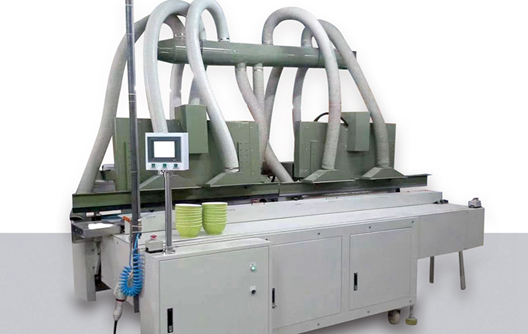

CNC Continuous Circular Melamine Ware Edge Polishing Machine

CNC Continuous Circular Melamine Ware Polishing Machine

1. Dimensions: 3850L*1750W*1950H

2. Operational height: 820 millimeters

3. Motor for edging: 4 kilowatts, 3-phase, alternating current (AC), 380 volts

4. Motor for polishing: 4 kilowatts, 3-phase, AC380 volts

5. Transmission motor: 1.5 kilowatts, 3-phase, AC380 volts

6. Workpiece size range: 55-250 millimeters in diameter

7. Maximum working speed: 25 pieces per minute

FAQ about CNC Circular Melamine Grinding Machine

Q1: How can I adjust the inclination of the grinding line on the equipment?

A1: The grinding apparatus has an automated vertical movement mechanism, allowing for an adjustable range of 0 to 8 degrees for the inclination of the grinding line.

Q2: What safety measures are in place in the equipment?

A2: The equipment is equipped with safety devices such as upper and lower limit mechanisms for each axis and protective coverings for the transmission components.

Q3: Is the equipment easy to relocate?

A3: Certainly, the equipment is designed with four detachable and mobile wheels to facilitate its movement and transportation.

Q4: How is the transmission screw bearing lubricated?

A4: The transmission screw bearing is provided with a manual oiling system for lubrication.

Q5: What material is used for the adjustable V-shaped slide seat?

A5: The adjustable V-shaped slide seat is constructed using durable steel and incorporates wear-resistant features.
