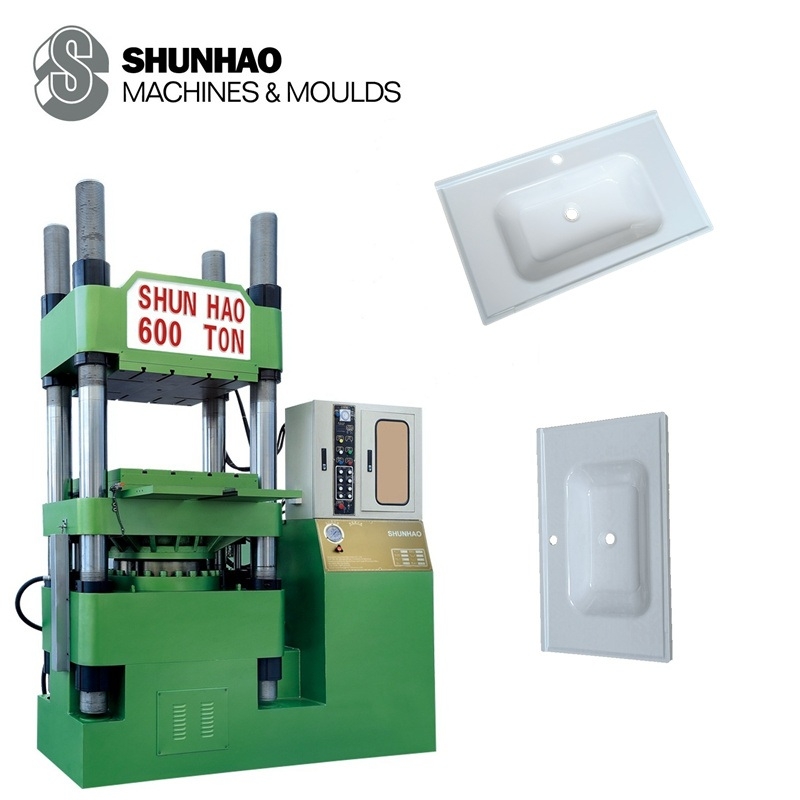

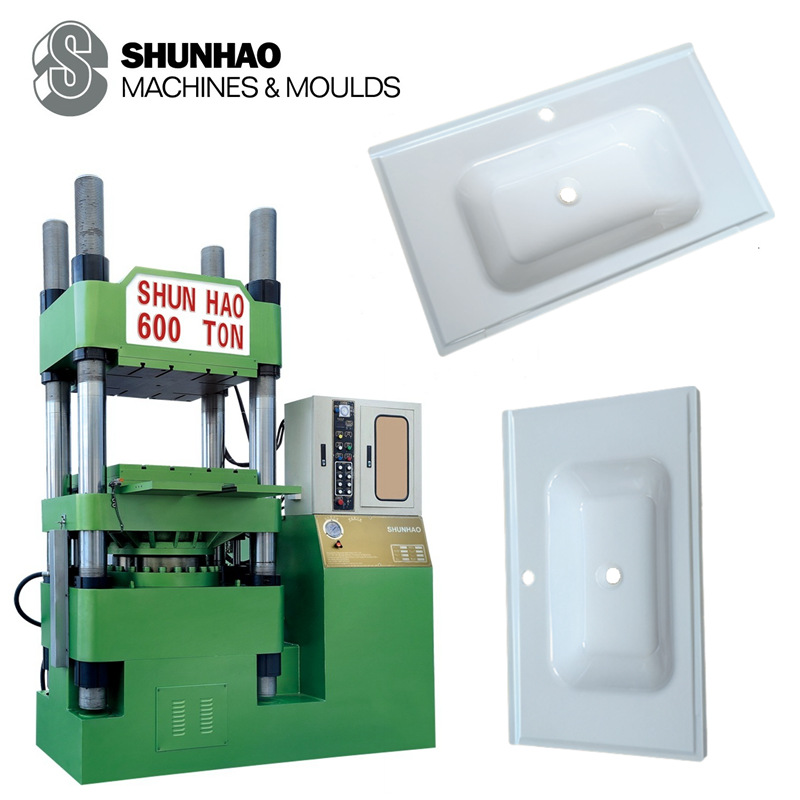

Automatic wash basin making machine manufacturer
Brand:
ShunhaoPayment:
LC, TTProduct Origin:
ChinaShipping Port:
XiamenMachine Dimension:
2.6*1.5*3.2 MMachine Weight:
12000KGSupport Service:
Life-time ServiceUrea Wash Basin Making Machine
Machine Size: 2.6*1.5*3.2 M
Machine Weight: 12000KGS
Technical Parameters
No. |
Content |
DTB 600 |
1 |
Main Cylinder Nominal Pressure |
600Tons |
2 |
Maximum Working Pressure |
210kg/cm2 |
3 |
Main Cylinder Piston Diameter |
Ø600mm |
4 |
※Auxiliary Cylinder |
Shaft Ø50/pressure 12T |
5 |
Main Cylinder Working Stroke |
600mm |
6 |
Adjustable Table Distance |
600~900mm |
7 |
Heating Plate Size |
900*860mm |
8 |
Heating Plate Material |
45# Special crafts |
9 |
Tension Column (Heat Treatment Grinding) |
Ø165*2692mm |
10 |
Oil Hydraulic Pump |
21Mpa |
11 |
Machine Total Power |
31.7KW |
■ PS: Specifications subject to change without notice.
FAQ
Q: Where is your factory situated, and how can I arrange a visit?
A: Our factory is based in Quanzhou City, Fujian Province, China.
By air: Xiamen International Airport (1-hour drive to Quanzhou)
Quanzhou Airport (30-minute drive/taxi to the factory)
By train: Quanzhou Station (30-minute drive/taxi to the factory)
Q: What are your core product offerings?
A: We specialize in melamine tableware molding machines, high-frequency preheating machines, melamine edge grinding machines, urea toilet seat manufacturing machines, and various melamine/urea molds.
Q: What is the standard lead time for orders?
A: Most items can be delivered within 15–30 days.
Q: What payment methods do you accept?
A: We support L/C and T/T.
