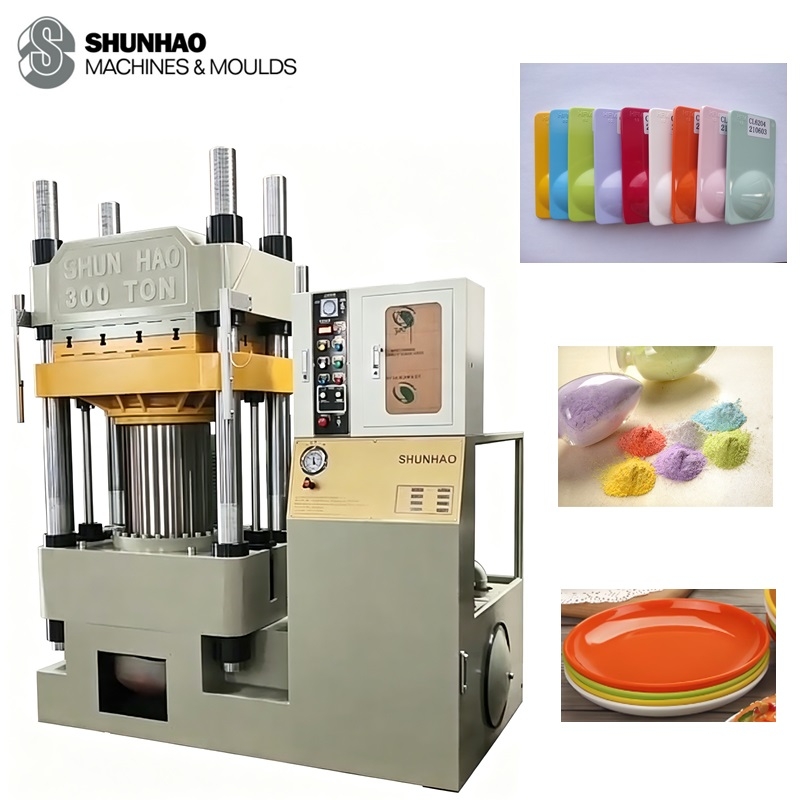

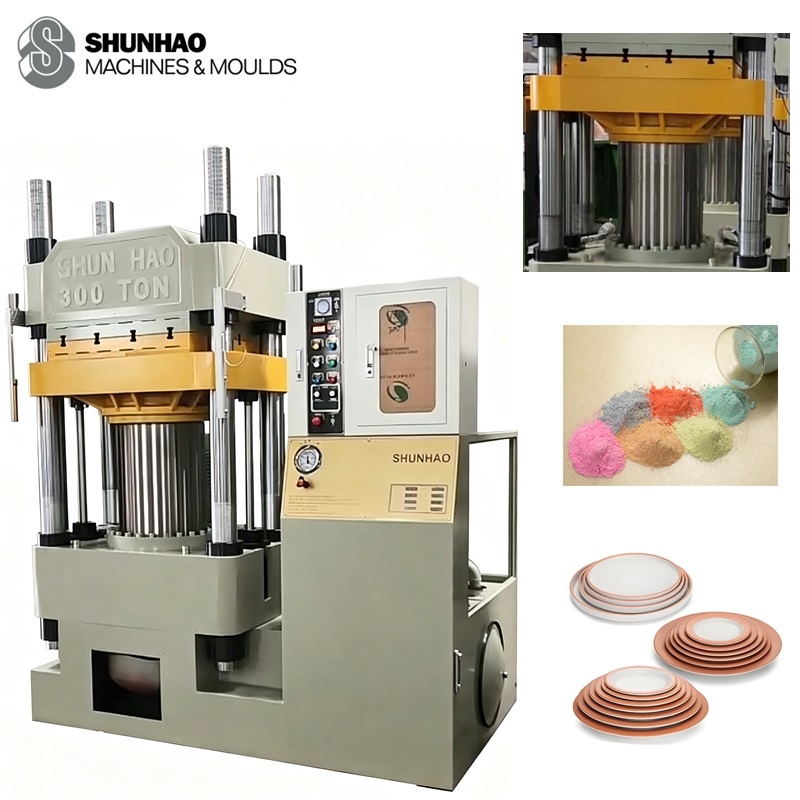

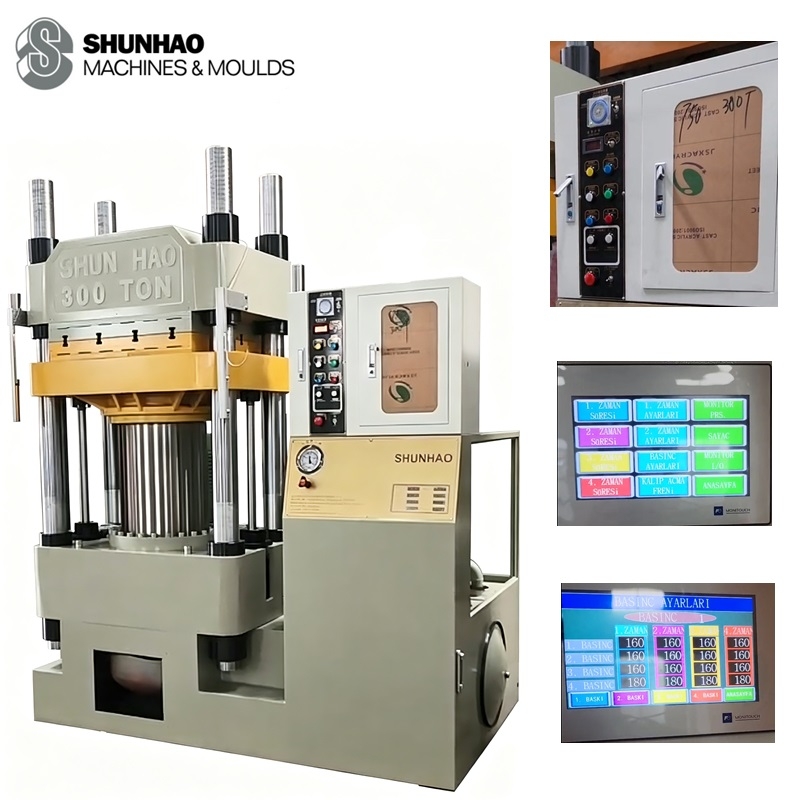

300 Tons Single Customized Color Shunhao Melamine Dinner Set Making Machine

Core Features of Shunhao Brand Melamine Molding Machine:

1. Shunhao dinnerware moldig machine offers multiple forming modes, including constant pressure mode, constant stroke mode, timed mold mode, and piece-count mode.
2. The pressure display directly shows the tonnage, and the stroke display is accurate to 0.01mm.
3. Both constant stroke and constant pressure modes are digitally controlled, resulting in greater precision and significantly reducing the scrap rate.
4. The stroke setting can be arbitrarily set to "0," greatly improving operator accuracy.
5. Multiple detection points can be set, and the relationship between all detection points and displacements can be generated into a table. Upper and lower pressure limits can be set according to user requirements.
6. The structure is a four-column, four-beam design, facilitating adjustment of the middle mold parallelism. The loading height can be set by computer, and various pressures, actions, displacements, and holding times are all numerically controlled. This ensures consistent shape and weight of the pressed work pieces with extremely low error.

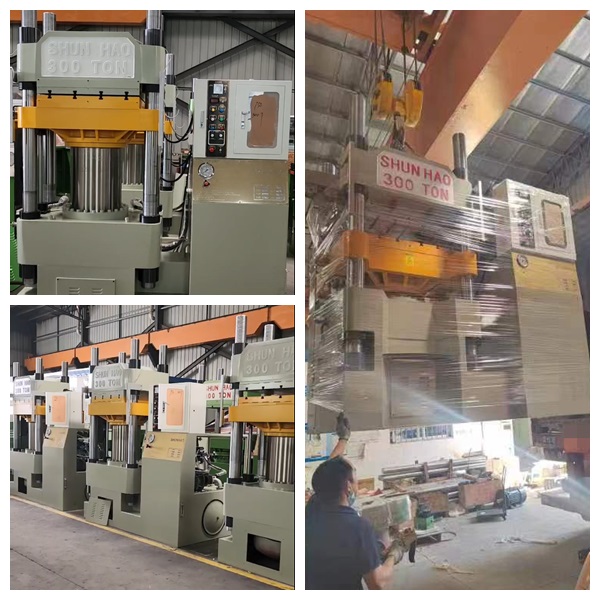

Shunhao Machines Factory adopts robust structural designs and high-grade key components to ensure stable long-term operation, low failure rates and extended service life. Every piece of our melamine forming equipment undergoes strict material selection, precise machining and multi round performance testing before delivery. Shunhao brings reliable, cost-effective production solutions for global melamine product manufacturers.

FAQ

Q: What are the characteristics of the four guide pillars in the melamine molding machine?

A: They are made of high-quality 45# tempered steel, and the guide pillar diameter is increased to improve the safety factor. A 25MPa high-pressure test is performed on the machine, resulting in better stability.

Q: What are the characteristics of Shunhao's pistons?

A: They are made of chilled cast iron, with a surface hardness higher than HRC56.

Q: What are the characteristics of Shunhao's insulation materials?

A: The insulation boards use a double-layer (mica + resin) structure. Compared with ordinary asbestos insulation boards, they have higher strength, are less prone to cracking, and have better insulation performance.
